Industrial
Processing
PROCESS
BURNERS
FOR
EVERY TYPE OF PRODUCTION LINE PROCESSING WHERE HIGH INTENSITY
HEAT IS REQUIRED FOR DRYING - BAKING - CURING - BLANCHING PEELING
- FUSING - MOISTURE REMOVAL AND OTHER FUNCTIONS.
Heat
Process Infra-Red Process Burners provide a most efficient and
versatile form of concentrated heat on production lines, to answer
the need of literally hundreds of commercial and industrial applications
where heat is required in the manufacturing processes. Heat Process'
standardized 20,000 BTU units may be gang-mounted to the user's
precise requirements. There is no end to the ingenious uses to
which Heat Process Infra-Red Process Burners may be put in manufacturing.
Industrial
Processing Applications
|
Food
Processing:
- Broiling
- Blanching
- Baking
- Peeling
- Dehydrating
- Suriming
|
Plastic
Operations:
- Thermoforming
- Shrink
Plastic
- Fusing
- Curing.
|
Curing:
- Powder
Paint
- Adhesives
- Tile
- Ornaments
and Rubber
|
|
Drying
Operations:
- Recommended
for Drying Operations involving Paint, Paper, Printing
or Silk Screening.
- To
remove solvents or waterborne particulates.
- These
burners are perfect for drying themoplastics and thermosetting.
|
20,000
BTUs
HPS-20 and HPF-20 feature stainless steel, aluminum or steel burner
casting. Operates in any position. Uses atmospheric inspirated
air or a pre-mix gas air supply.

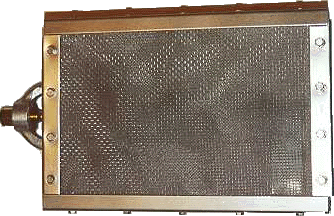

MODEL
HPF-20
Mechanical
Specifications
HPF-20,
20,000 BTU, Natural Gas or Liquid Petroleum Gas.
6 1/4" x 8 3/8" long, weight - 4 Ibs.
May be gangmounted side by side to fit user's requirements.

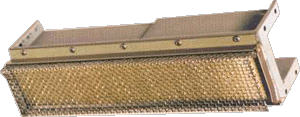

MODEL
HPS-20
Mechanical
Specifications
HPS-20,
20,000 BTU, Natural Gas or Liquid Petroleum Gas.
3" wide x 16 1/4" long, weight - 9 Ibs.
May be gangmounted end to end to fit user's requirements.
|
